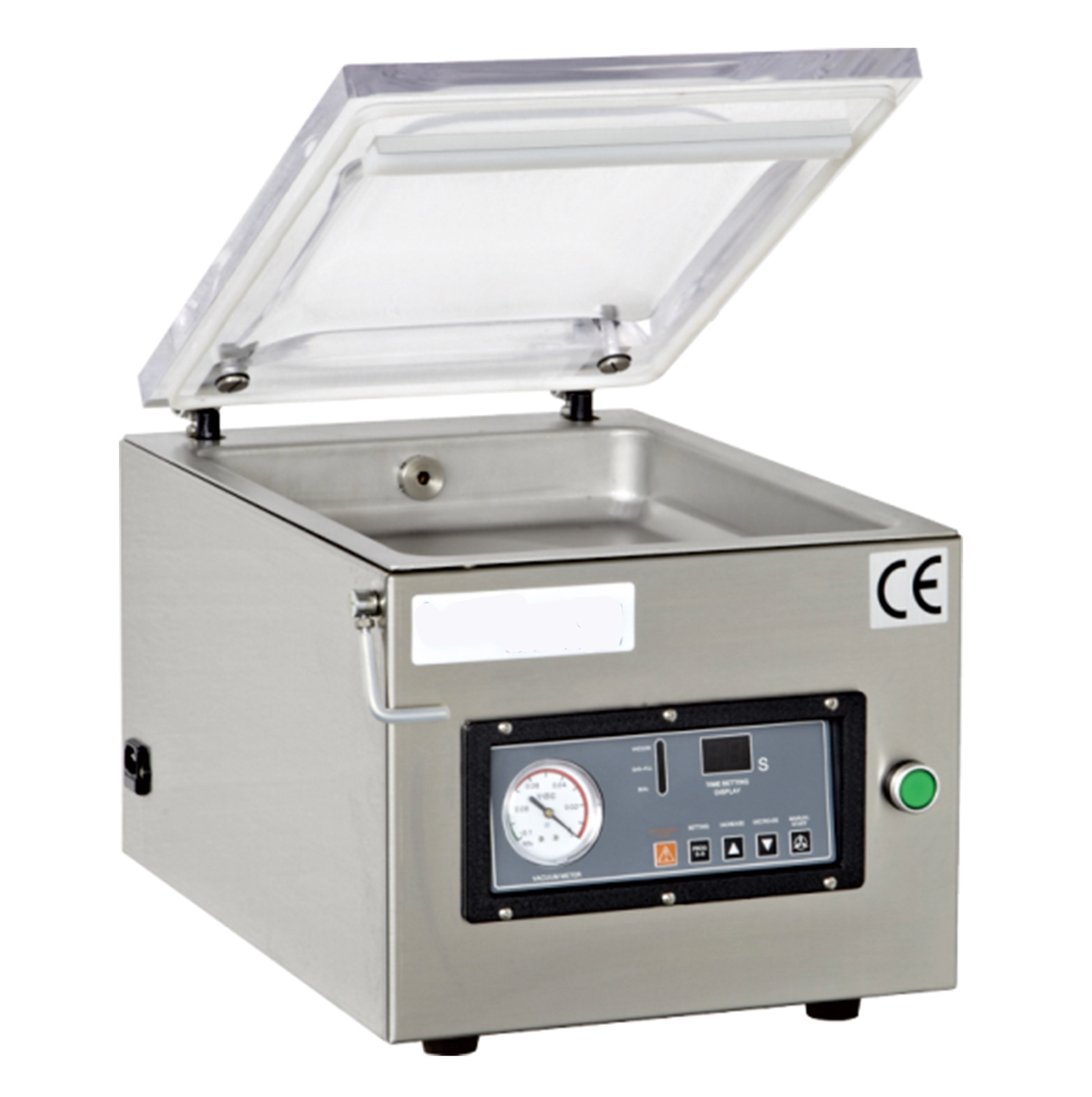

DOZE300T chamber vacuum sealer

DOZE300T chamber vacuum sealer is a tabletop industrial unit specified for controlled, repeatable packaging of food and non-food items in enterprise environments where dimensional constraints, takt time, and documentation are material to purchase decisions. The machine operates with a single sealing bar and a compact chamber optimized for small to medium products; purchasers should verify fit against the maximum product envelope. Key operating elements include a chamber size of 385 × 280 × 50 mm (verify with samples), a single sealing bar 260 × 8 mm, a pump capacity of 10 m³/h, a typical cycle time of 10–20 s, and single-phase 220 V / 50 Hz electrical input at 0.4 kW. The benchtop layout and approximate footprint of 490 × 450 × 320 mm support installation on standard worktables with adequate lid clearance. For teams assessing MAP requirements, this configuration is a standard vacuum model without integrated gas-flush; if modified atmosphere packaging is mandatory, a variant with MAP capability should be selected. Where product heights, liquids, or viscous contents are involved, filler plates and liquid-handling accessories should be considered to maintain consistent seal formation and service life while meeting throughput objectives within the expected duty cycle.

DOZE300T chamber vacuum sealer video

FAQs of chamber vacuum sealer video

• What are the largest product dimensions (Length × Width × Height) to be packaged?
  The chamber size measures approximately 385 × 280 × 50 mm. It is essential to verify that the products fit comfortably within this chamber size to avoid packaging issues. For bulkier items, consider if the 50 mm chamber height is sufficient.

• What is the width of the bag opening or mouth?
  The single sealing bar is 260 mm wide. The bag mouth must not exceed this width to ensure proper sealing. For products with wider openings, diagonal bag placement in the chamber may be possible if it fits within the chamber dimensions.

• What is the height of your items?
  The effective chamber height is around 50 mm. If your items are taller or bulky, this model may not be suitable, and a larger chamber vacuum sealer should be considered.

• What throughput or packaging cycle rate per hour do you require?
  The VM300TE/A offers a cycle time of approximately 10 to 20 seconds per package. Confirm if this throughput aligns with your production takt time or hourly output requirements.

• Is 220 V / 50 Hz single-phase power with the correct plug type available at your workstation?
  This machine requires a standard single-phase power supply at 220 volts and 50 Hz frequency. Ensure your facility meets these electrical specifications for correct and safe operation.

• Do you require gas flushing or modified atmosphere packaging (MAP) options such as nitrogen or CO₂ injection?
  The VM300TE/A model supports standard vacuum packaging only. If gas flushing or MAP is required for extended preservation, consider models with gas flush capabilities, such as VMQ series.

• What type of products are you packing—dry, greasy, or liquids such as marinades or soups?
  This vacuum sealer can handle a variety of product types, including solids, powders, liquids, and pastes. For liquids or semi-liquids, use accessories such as filler plates to prevent liquid ingress into the vacuum pump.

• Which pouch type and thickness do you plan to use?
  The machine is compatible with vacuum bags made from complex films including laminated and aluminum-foil barrier bags. Bag thickness of 70 to 100+ microns is typical. Ensure your bag supplier meets these requirements for optimal sealing performance.

• Do you have adequate bench space and vertical clearance?
  The machine footprint is approximately 490 × 450 × 320 mm, with additional overhead clearance required for the acrylic lid to open completely during operation. Ensure your workspace accommodates this configuration safely.

• What are your compliance requirements and service expectations regarding certification documents (e.g., CE), use of food-contact materials, warranty coverage, spare parts availability, and delivery lead times?
  The product is CE certified and uses food-grade materials safe for packaging consumables. Warranty terms and availability of spare parts such as heating elements and Teflon strips are provided by the manufacturer. Delivery and service timelines should be discussed with the supplier to match your operational needs.

Key Technical Specifications of DOZE300T chamber vacuum sealer

Chamber vacuum sealer DOZE300T presents a compact working envelope for small-format packaging while preserving industrial duty expectations, and the following parameters are the primary selection criteria for engineering and purchasing teams. The effective chamber dimensions define the maximum loadable workpiece or pouch geometry, while the sealing bar dictates bag mouth width; items exceeding these constraints will require alternative models, diagonal placement (if appropriate), or process redesign. Electrical and pneumatic independence simplify placement in general purpose facilities; however, lid clearance and bench rigidity remain essential. Cycle time depends on product permeability, pouch thickness, and target vacuum level; the nominal 10–20 seconds is for typical use cases and should be validated during trials.

ROI and Operational Efficiency of DOZE300T chamber vacuum sealer

DOZE300T chamber vacuum sealer improves unit economics by reducing product waste, rework from failed seals, and manual handling time between upstream preparation and downstream boxing or cold storage. At a nominal 10–20 second cycle, single-operator hourly throughput can be planned deterministically and scaled by parallel benches, making the device suitable for steady-state demand or level-loading in mixed-SKU environments. Packaging durability after evacuation lowers leakage-induced returns and extends shelf life for moisture-sensitive or oxidation-sensitive goods, reducing scrap and emergency re-production. The single-phase 220 V / 50 Hz power requirement avoids installer-intensive connections, allowing relocation as workcells change. Standardized pouches and predictable seal geometry reduce procurement complexity and simplify inventory of consumables. Where line speed is the constraint, takt-time modeling with realistic pouch sizes and representative loads generally reveals sufficient headroom from the 10 m³/h pump for small format goods; if not, the compact footprint enables multi-station deployment to achieve the required hourly rate without large capital outlays.

Key Features and Benefits of DOZE300T chamber vacuum sealer

DOZE300T chamber vacuum sealer provides a controlled sealing environment inside the chamber, delivering consistent seal formation independent of ambient turbulence, which is critical for repeatable food and industrial packaging. The 260 mm sealing bar constrains the maximum bag mouth width, assisting planners in selecting standard pouch SKUs that minimize trim waste while ensuring mouth compatibility; the 8 mm seal width supports robust closure for heavier contents. The 10 m³/h pump and compact chamber volume contribute to predictable cycles and lower exposure time for heat-sensitive items, improving line balancing. A tabletop form factor and approximately 490 × 450 × 320 mm overall size allow placement in confined facilities without compromising operator access or lid articulation. Standard 220 V / 50 Hz input simplifies deployment in offices, small production rooms, and auxiliary labs. With appropriate filler plates and staging trays, the unit can handle liquids or high-fat items by stabilizing the product profile, thereby improving seal quality and reducing cleanup and downtime.

How to Use DOZE300T chamber vacuum sealer

DOZE300T chamber vacuum sealer is operated by placing the loaded pouch inside the chamber with the bag mouth aligned across the 260 mm sealing bar, ensuring that the product height does not exceed the 50 mm chamber threshold after accounting for filler plates, racks, or trays. Operators should verify that the selected pouch thickness (typically 70–100+ μm smooth chamber bags) matches product mass and edge geometry to maintain seal integrity under compression and transport. For wet or oily goods, use stabilizers to keep the sealing area clean and dry, and avoid overfilling to prevent boil-over. Cycle parameters should be set according to load permeability and desired residual oxygen; the nominal 10–20 second cycle offers a baseline for planning, but acceptance testing should be conducted with representative SKUs. After sealing, the bag should be cooled before downstream boxing to preserve edge quality. Electrical connection uses single-phase 220 V / 50 Hz; the workbench must provide sufficient lid clearance and rigid support.

1. Stage pouches, filler plates, and product trays; verify bench clearance and power.
2. Load product into pouch; clean the mouth area and align across the 260 mm bar.
3. Adjust cycle parameters (vacuum time, seal time) for the specific load.
4. Close lid to initiate the cycle; wait for evacuation, seal, and vent phases.
5. Remove the sealed pouch; allow cooling prior to boxing or cold storage.

Where to Use and Who Should Use DOZE300T chamber vacuum sealer

• Small to medium food processors, caterers, and central kitchens requiring portion control and extended shelf life for meats, cheeses, sauces, and prepared components.
• Laboratories and technical departments packaging moisture-sensitive samples, electronics, or spares for controlled storage and shipment.
• Light manufacturing and aftermarket operations preparing kits, fasteners, and consumables for field service or e-commerce fulfillment.

Design and Compatibility of DOZE300T chamber vacuum sealer

• Tabletop chamber with transparent lid for process visibility and ergonomic loading; bench mounting requires a rigid surface to maintain lid alignment.
• Compatibility with smooth chamber vacuum bags sized to the 260 mm mouth limit; diagonal placement may be feasible within the 385 × 280 × 50 mm chamber envelope.
• Accessories including filler plates and trays to optimize headspace, reduce product boil, and standardize seal presentation across SKU profiles.

Performance and Capabilities of DOZE300T chamber vacuum sealer

• Nominal 10 m³/h vacuum pump supporting 10–20 second cycles under typical light to medium loads; actual performance must be validated with target products.
• 8 mm seal width designed for durable closure; correct pouch gauge selection is required to prevent peel or channel leaks during distribution.
• Standard vacuum configuration; if modified atmosphere packaging is required, select a MAP-enabled variant rather than retrofitting.

Safety and Durability of DOZE300T chamber vacuum sealer

• Operation within an enclosed chamber reduces operator exposure to moving seal components; transparent lid enables status monitoring.
• Use of appropriate filler plates and correct load height protects the lid and hinge, supporting long-term alignment and seal consistency.
• Electrical conformity to 220 V / 50 Hz single phase with grounded connection; follow local regulations and facility safety policies.

Adjustments and Maintenance of DOZE300T chamber vacuum sealer

• Routine checks of seal element, Teflon tape, and silicone pressure bar to sustain uniform heat transfer and edge quality.
• Periodic inspection of lid gasket, hinge, and chamber surfaces; keep sealing area clean and dry to avoid contamination.
• Parameter verification during SKU changeovers to maintain takt time and minimize reject rate; keep a validated settings log for audits.

Environmental Impact of DOZE300T chamber vacuum sealer

DOZE300T chamber vacuum sealer contributes to reduced material and product waste by delivering consistent seal integrity and longer storage stability, which in turn lowers spoilage, rework, and transport losses. By right-sizing pouch dimensions to the 260 mm mouth and chamber envelope, facilities can standardize on a limited set of film SKUs, reducing over-specification and scrap. Stable seals decrease the incidence of secondary packaging failure, allowing lighter outer cartons and fewer protective inserts in some applications. The compact, single-phase design reduces installation footprints and can be integrated into existing workcells without additional compressed air or three-phase electrical infrastructure, minimizing embodied upgrade impacts. Where sustainability targets exist, purchasers should pair the unit with fit-for-purpose film gauges and recycling programs consistent with local regulations, ensuring that the process improvements achieved at sealing are matched by end-of-life pathways for packaging materials.

Buy DOZE300T chamber vacuum sealer

DOZE300T chamber vacuum sealer is positioned for organizations seeking a documented, compact chamber machine that integrates into existing benches with minimal disruption, supports predictable takt times, and standardizes pouch handling across small-format SKUs. Purchasers can proceed directly via ADD TO CART when the described envelope, 260 mm mouth limit, and 10–20 second duty fit the intended workload and quality plan; where site conditions, consumables, or compliance dossiers require confirmation, use GET OFFER to request a personalized quotation with voltage options, accessory sets, and acceptance-test parameters.
